IP65 Surface Distribution Boxes
As a professional high quality IP65 Surface Distribution Boxes manufacturer, you can rest assured to buy IP65 Surface Distribution Boxes from our factory. And we will offer you the best after-sale service and timely delivery.Categories: Distribution BOX
Model: IP65
Degree of protection: IP65
Resistance to impact: IK08
Glow wire resistance: ABS:650℃ Polycarbonate:750℃
Ball pressure test: 70℃
Ambient temperature range: -25℃/+40℃
Maximum operature voltage: 1000V AC/1500V DC
Double insulation: Class II
Model: IP65
Degree of protection: IP65
Resistance to impact: IK08
Glow wire resistance: ABS:650℃ Polycarbonate:750℃
Ball pressure test: 70℃
Ambient temperature range: -25℃/+40℃
Maximum operature voltage: 1000V AC/1500V DC
Double insulation: Class II
Send Inquiry
Product Description
Wenzhou Kenig Technology Co., Ltd. is a professional China IP65 Surface Distribution Boxes manufacturer and supplier, known for its quality service. Adhering to the pursuit of perfect quality of products, so that our IP65 Surface Distribution Boxes have been satisfied by many customers. In order to ensure the quality and customer needs, we have cooperated with domestic power groups with strong production strength. We will strictly screen each supplier and send videos to customers to watch.
|
Categories |
Distribution BOX |
|
Model |
IP65 |
|
Degree of protection |
IP65 |
|
Resistance to impact |
IK08 |
|
Glow wire resistance |
ABS:650℃ Polycarbonate:750℃ |
|
Ball pressure test |
70℃ |
|
Ambient temperature range |
-25℃/+40℃ |
|
Maximum operature voltage |
1000V AC/1500V DC |
|
Double insulation |
Class II |
Technical Specifications
-Degree of protection: IP65.
-Resistance to impact: IK08.
-Glow wire resistance:
ABS: 650℃
Polycarbonate: 750℃
-Ball pressure test: 70℃
-Ambient temperature range: -25℃ / +40℃
-Maximum operating voltage:1000 V / AC /1500 V DC.
-Double insulation: Class ll
Product
Dimension
IP65 surface distribution boxes[ABS]
|
Reference No. |
No. of modules |
Dimensions |
Weight |
Power dissipation according to temperatire increase ℃ P[W]* |
Type |
||||
|
|
|
HEIGHT X WIDTH X DEPTH |
KG |
20 |
25 |
30 |
35 |
40 |
|
|
FCDB-EU-A4P |
1×4 DIN rail |
231×166×113 |
0.75 |
8.9 |
11.1 |
13.3 |
15.5 |
17.8 |
65S04 |
|
FCDB-EU-A6P |
1×6 DIN rail |
231×202×113 |
0.84 |
10.1 |
12.6 |
15.1 |
17.7 |
20.2 |
65S06 |
|

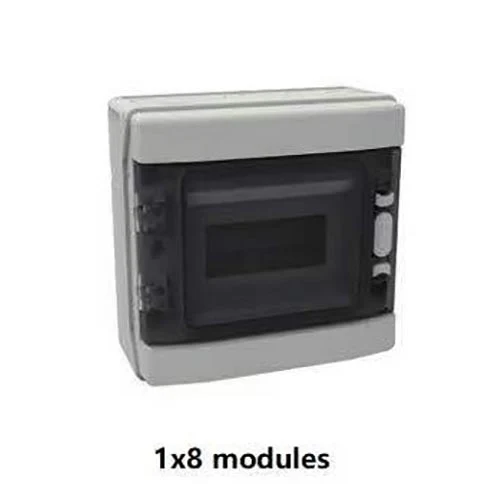

FCDB-EU-A8P |
1×8 DIN rail |
231×238×118 |
0.95 |
11.6 |
14.5 |
17.4 |
20.3 |
23.1 |
65S08 |
|
FCDB-EU-A12P |
1×12 DIN rail |
246×310×148 |
1.51 |
16.6 |
20.7 |
24.8 |
29.0 |
33.1 |
65S12 |
|
FCDB-EU-A18P |
1×18 DIN rail |
286×418×148 |
1.97 |
23.1 |
28.9 |
34.7 |
40.4 |
46.2 |
65S18 |
|
FCDB-EU-A24P |
2×12[24] DIN rail |
436×310×148 |
2.51 |
25.9 |
32.3 |
38.8 |
45.3 |
51.7 |
65S24 |
CONTINUED ON PAGE 242.
IP65 surface distribution boxes[Polycarbonate]
|
Reference No. |
No. of modules |
Dimensions |
Weight |
Power dissipation according to temperatire increase ℃ P[W]* |
Type |
||||
|
|
|
HEIGHT X WIDTH X DEPTH |
KG |
20 |
25 |
30 |
35 |
40 |
|
|
FCDB-EU-P4P |
1×4 DIN rail |
231×166×113 |
0.81 |
8.9 |
11.1 |
13.3 |
15.5 |
17.8 |
65S04 |
|
FCDB-EU-P6P |
1×6 DIN rail |
231×202×113 |
0.83 |
10.1 |
12.6 |
15.1 |
17.7 |
20.2 |
65S06 |
|
FCDB-EU-P8P |
1×8 DIN rail |
231×238×118 |
0.96 |
11.6 |
14.5 |
17.4 |
20.3 |
23.1 |
65S08 |
|
FCDB-EU-P12P |
1×12 DIN rail |
246×310×148 |
1.51 |
16.6 |
20.7 |
24.8 |
29.0 |
33.1 |
65S12 |
|
FCDB-EU-P18P |
1×18 DIN rail |
286×418×148 |
2.03 |
23.1 |
28.9 |
34.7 |
40.4 |
46.2 |
65S18 |
|
FCDB-EU-P24P |
2×12[24] DIN rail |
436×310×148 |
2.51 |
25.9 |
32.3 |
38.8 |
45.3 |
51.7 |
65S24 |
